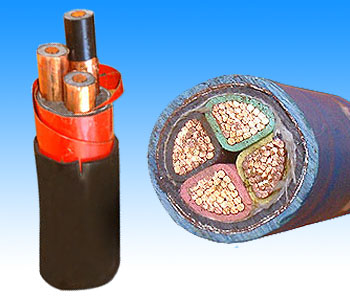

 8.7/10kV XLPE交联聚乙烯绝缘电力电缆 |
|
|
 技术参数
|
|
8.7/10kV XLPE交联聚乙烯绝缘电力电缆结构尺寸、技术性能
型号YJV22
|
导体 |
内屏蔽厚度mm |
绝缘厚度mm |
外屏蔽厚度mm |
内设厚度mm |
钢带厚度mm |
外设厚度mm |
电缆外径 |
试验电压 |
最大导体电阻 |
电缆计算重量 |
|
截面mm2 |
外径mm |
|
3×25 |
6.2 |
0.8 |
4.5 |
1.0 |
1.4 |
1.0 |
2.6 |
53.2 |
22 |
0.727 |
3677 |
|
3×35 |
7.2 |
0.8 |
4.5 |
1.0 |
1.5 |
1.0 |
2.7 |
55.8 |
22 |
0.524 |
4169 |
|
3×50 |
8.4 |
0.8 |
4.5 |
1.0 |
1.5 |
1.0 |
2.8 |
58.6 |
22 |
0.387 |
4803 |
|
3×70 |
10.0 |
0.8 |
4.5 |
1.0 |
1.6 |
1.0 |
2.9 |
62.4 |
22 |
0.268 |
5674 |
|
3×95 |
11.5 |
0.8 |
4.5 |
1.0 |
1.7 |
1.0 |
3.1 |
66.3 |
22 |
0.193 |
6704 |
|
3×120 |
13.0 |
0.8 |
4.5 |
1.0 |
1.8 |
1.0 |
3.2 |
69.9 |
22 |
0.153 |
7708 |
|
3×150 |
14.5 |
0.8 |
4.5 |
1.0 |
1.8 |
1.0 |
3.4 |
73.5 |
22 |
0.124 |
8852 |
|
3×185 |
16.1 |
0.8 |
4.5 |
1.0 |
2.0 |
1.6 |
3.6 |
790 |
22 |
0.0991 |
11091 |
|
3×240 |
18.3 |
0.8 |
4.5 |
1.0 |
2.1 |
1.6 |
3.9 |
84.5 |
22 |
0.0754 |
12195 |
|
3×300 |
20.0 |
0.8 |
4.5 |
1.0 |
2.2 |
1.6 |
4.1 |
88.5 |
22 |
0.0601 |
15304 |
|
3×400 |
23.7 |
0.8 |
4.5 |
1.0 |
2.4 |
1.6 |
4.4 |
97.5 |
22 |
0.0470 |
190391 | |
|
|
|
|
