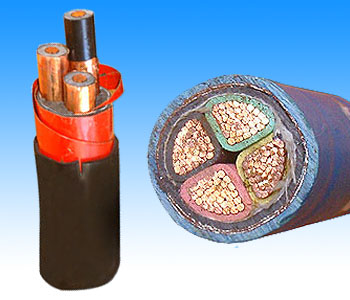

 26/35kV XLPE 交联聚乙烯绝缘电力电缆 |
|
|
 技术参数
|
|
26/35kV XLPE 交联聚乙烯绝缘电力电缆结构尺寸、技术性能
型号YJV22
|
导体 |
内屏蔽厚度mm |
绝缘厚度mm |
外屏蔽厚度mm |
内护套厚度mm |
钢带厚度mm |
外护套厚度mm |
电缆外径mm |
试验电压kv |
最大导体电阻Ω/km |
电缆计算重量kg/km |
|
截面mm2 |
外径mm |
|
3×50 |
8.4 |
0.8 |
10.5 |
1.0 |
2.1 |
1.6 |
3.8 |
89.0 |
65 |
0.387 |
9292 |
|
3×70 |
10.0 |
0.8 |
10.5 |
1.0 |
2.1 |
1.6 |
3.9 |
92.7 |
65 |
0.268 |
10312 |
|
3×95 |
11.5 |
0.8 |
10.5 |
1.0 |
2.2 |
1.6 |
4.1 |
96.5 |
65 |
0.193 |
11527 |
|
3×120 |
13.0 |
0.8 |
10.5 |
1.0 |
2.3 |
1.6 |
4.2 |
100 |
65 |
0.153 |
12707 |
|
3×150 |
14.5 |
0.8 |
10.5 |
1.0 |
2.4 |
1.6 |
4.4 |
104.0 |
65 |
0.124 |
14087 |
|
3×185 |
16.1 |
0.8 |
10.5 |
1.0 |
2.5 |
1.6 |
4.6 |
108.0 |
65 |
0.0991 |
15628 |
|
3×240 |
18.3 |
0.8 |
10.5 |
1.0 |
2.6 |
1.6 |
4.8 |
113.4 |
65 |
0.0754 |
17903 |
|
3×300 |
20.0 |
0.8 |
10.5 |
1.0 |
2.7 |
1.6 |
5.0 |
117.6 |
65 |
0.0601 |
20167 |
|
3×400 |
23.7 |
0.8 |
10.5 |
1.0 |
2.9 |
1.6 |
5.4 |
127.4 |
65 |
0.470 |
24347 | |
|
|
|
|
